Specifications

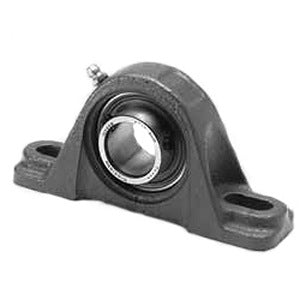

| title | PB220 X 2-3/16 |
| price | $ 186.37 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 3.77 |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 8.3 |
| Other Features | Single Row | Spherical | Low Base | Has Trash Guard | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 519916 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.906 Inch | 48.42 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.8 Inch | 171.5 Millimeter |
| Bolt Spacing Minimum | 6.438 Inch | 163.525Millimeter |
| Base to Center Height | 2.438 Inch | 61.925 Millimeter |
| Bolt Spacing Maximum | 7.375 Inch | 187.325Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B220 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Nitrile Rubber |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
