Specifications

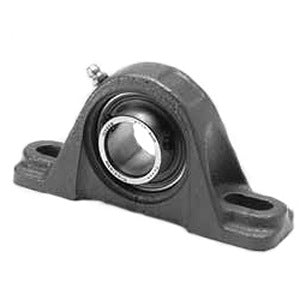

| title | PB220 X 1 |
| price | $ 71.34 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 1.361 |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 2.3 |
| Other Features | Single Row | Spherical | Low Base | Has Trash Guard | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 519929 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.22 Inch | 31 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.1 Inch | 105 Millimeter |
| Bolt Spacing Minimum | 3.5 Inch | 88.9Millimeter |
| Base to Center Height | 1.313 Inch | 33.35 Millimeter |
| Bolt Spacing Maximum | 4.5 Inch | 114.3Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B220 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Nitrile Rubber |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
