Specifications

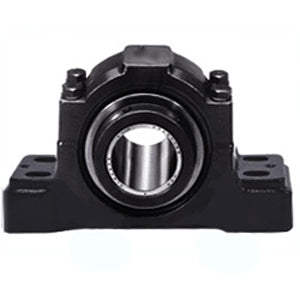

| title | P4B538-TAF-700RE |
| price | $ 8,811.48 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 212.472 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 520 |
| Other Features | Double Row | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 493742 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 10.5 Inch | 266.7 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 23 Inch | 584.2 Millimeter |
| Bolt Spacing Minimum | 21.625 Inch | 549.275Millimeter |
| Base to Center Height | 7.875 Inch | 200.025 Millimeter |
| Bolt Spacing Maximum | 24.375 Inch | 619.125Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | S1U-TAF-700R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1-1/4 Inch |
| Housing Configuration | 2 Piece Split |
