FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

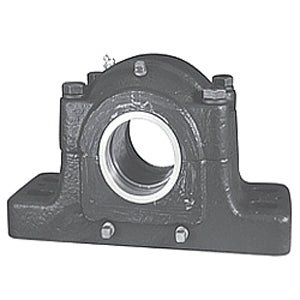

| title | P4B530-SFXT-503TT |
| price | $ 4,269.27 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 136.078 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 215 |
| Other Features | Double Row | Open End | Corrosion Resistant |
| Relubricatable | Yes |
| Global Part Number GPN | 520842 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 7.969 Inch | 202.413 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 17.6 Inch | 447 Millimeter |
| Bolt Spacing Minimum | 16.75 Inch | 425.45Millimeter |
| Base to Center Height | 6.313 Inch | 160.35 Millimeter |
| Bolt Spacing Maximum | 18.5 Inch | 469.9Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 22230K |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Tect |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 2 Piece Split |
