DODGE

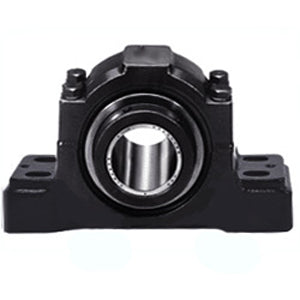

DODGE P4B526-TAF-408R

  • Write a review
  • FREE SHIPPING on orders over $100
    • $2,313.28 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title P4B526-TAF-408R
    price $ 2,721.51 / each
    Category Pillow Block Bearings
    UNSPSC 31171511
    Harmonized Tariff Code 8483.20.40.80
    Manufacturer Name ABB MOTORS AND MECHANICAL INC
    Weight / kgm 63.56
    Inch - Metric Inch
    Brand DODGE
    Weight / LBS 140
    Other Features Double Row | Optional E-Tect Seal | Double Collar | With Set Screw
    Relubricatable Yes
    Global Part Number GPN 520871
    Mounting Method Concentric Collar
    Length Thru Bore 6.75 Inch | 171.45 Millimeter
    Actual Bolt Center to Center 0 Inch | 0Millimeter
    Nominal Bolt Center to Center 15 Inch | 381 Millimeter
    Bolt Spacing Minimum 14.5 Inch | 368.3Millimeter
    Base to Center Height 6 Inch | 152.4 Millimeter
    Bolt Spacing Maximum 16 Inch | 406.4Millimeter
    Housing Style 4 Bolt Pillow Block
    Insert Part Number S1U-TAF-408R
    Number of Mounting Holes 4
    Expansion / Non-expansion Non-expansion
    Seals Land Riding Rubbing Single Lip Contact
    Housing Material Cast Iron
    Mounting Bolts 7/8 Inch
    Housing Configuration 2 Piece Split
