Specifications
| title | P4B526-TAF-407R |
| price | $ 2,474.09 / each |

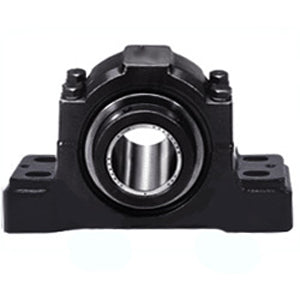

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 70.37 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 140 |
| Other Features | Double Row | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 520873 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 6.75 Inch | 171.45 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 15 Inch | 381 Millimeter |
| Bolt Spacing Minimum | 14.5 Inch | 368.3Millimeter |
| Base to Center Height | 6 Inch | 152.4 Millimeter |
| Bolt Spacing Maximum | 16 Inch | 406.4Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | S1U-TAF-407R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 2 Piece Split |
