Specifications

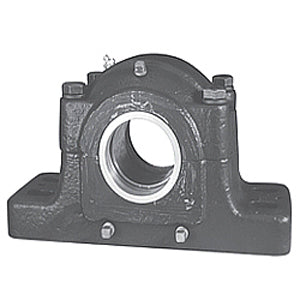

| title | P4B522-SFXT-100MTT |
| price | $ 1,915.99 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 41.77 |
| Inch - Metric | Metric |
| Brand | DODGE |
| Weight / LBS | 92 |
| Other Features | Double Row | Open End | Corrosion Resistant |
| Relubricatable | Yes |
| Global Part Number GPN | 520902 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 6.797 Inch | 172.644 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 13.6 Inch | 344.5 Millimeter |
| Bolt Spacing Minimum | 12.875 Inch | 327.03Millimeter |
| Base to Center Height | 4.937 Inch | 125.41 Millimeter |
| Bolt Spacing Maximum | 14.125 Inch | 358.78Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 22222K |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Tect |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
