FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

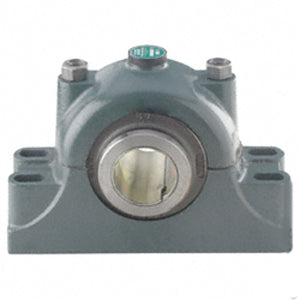

| title | P4B-SD-315 |
| price | $ 7,974.02 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 102.904 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 215 |
| Other Features | Double Row | Special Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 521110 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 8.5 Inch | 215.9 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 15.5 Inch | 393.7 Millimeter |
| Bolt Spacing Minimum | 15 Inch | 381Millimeter |
| Base to Center Height | 6.375 Inch | 161.925 Millimeter |
| Bolt Spacing Maximum | 16 Inch | 406.4Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | DU-SD-315 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Dual Piston Ring Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 2 Piece Split |
