Specifications
| title | P4B-S2-207L |
| price | $ 503.02 / each |

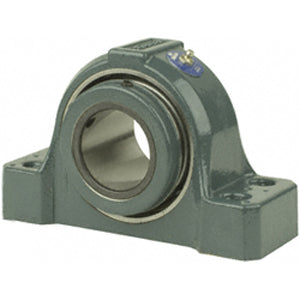

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 7.918 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 17.44 |
| Other Features | Double Row | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 521073 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.203 Inch | 81.356 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.3 Inch | 184 Millimeter |
| Bolt Spacing Minimum | 6.938 Inch | 176.225Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Bolt Spacing Maximum | 7.313 Inch | 185.75Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | INS-S2-207L |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Metallic Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
