Specifications

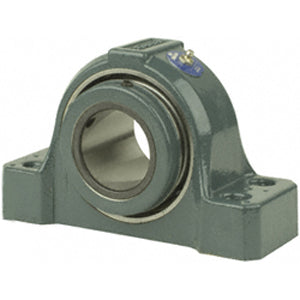

| title | P4B-S2-203R |
| price | $ 427.94 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 5.689 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 12.53 |
| Other Features | Double Row | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 521075 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.938 Inch | 74.625 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.8 Inch | 171.5 Millimeter |
| Bolt Spacing Minimum | 6.563 Inch | 166.7Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 6.938 Inch | 176.225Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | INS-S2-203R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
