Specifications

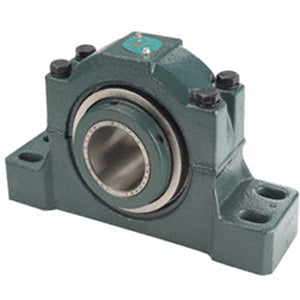

| title | P4B-DI-507R |
| price | $ 8,151.44 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 149.502 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 310 |
| Other Features | Double Row | Heavy Duty | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 521234 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 9 Inch | 228.6 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 19.8 Inch | 502.9 Millimeter |
| Bolt Spacing Minimum | 19 Inch | 482.6Millimeter |
| Base to Center Height | 7.125 Inch | 180.975 Millimeter |
| Bolt Spacing Maximum | 20.625 Inch | 523.875Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | S1U-DI-507R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 2 Piece Split |
