Specifications

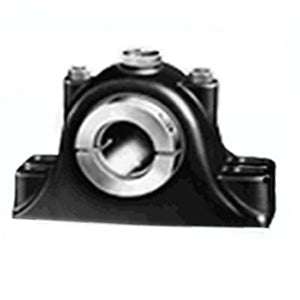

| title | P4B-C-315E |
| price | $ 7,163.80 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 110.322 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 230 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 521271 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 9.5 Inch | 241.3 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 15.5 Inch | 393.7 Millimeter |
| Bolt Spacing Minimum | 15 Inch | 381Millimeter |
| Base to Center Height | 6.375 Inch | 161.925 Millimeter |
| Bolt Spacing Maximum | 16 Inch | 406.4Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | S1U-C-315 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Multi Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 2 Piece Split |
