Specifications
| title | P2U347 |
| price | $ 1,151.74 / each |

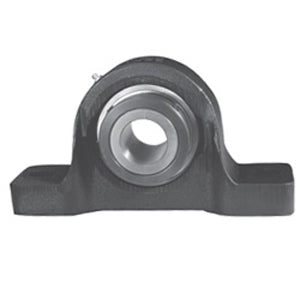

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 21.43 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 47.2 |
| Other Features | Single Row | Heavy Duty | Single Collar | High Base | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 245505 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.094 Inch | 104 Millimeter |
| Actual Bolt Center to Center | 12.4 Inch | 315Millimeter |
| Nominal Bolt Center to Center | 12.4 Inch | 315 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 4.563 Inch | 115.9 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UG347L |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Steel Clad Clearance |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
