Specifications

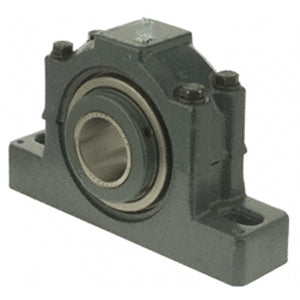

| title | P2B-K-115RE |
| price | $ 680.46 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 8.626 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 19 |
| Other Features | Double Row | Heavy Duty | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 522111 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.953 Inch | 75 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.9 Inch | 199.5 Millimeter |
| Bolt Spacing Minimum | 7.375 Inch | 187.325Millimeter |
| Base to Center Height | 2.875 Inch | 73.025 Millimeter |
| Bolt Spacing Maximum | 8.438 Inch | 214.325Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | S1U-K-115R |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
