FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

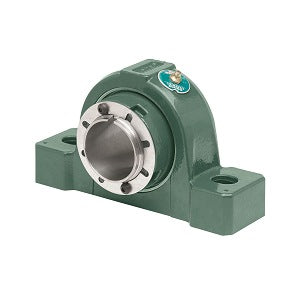

| title | P2B-IP-203R |
| price | $ 492.83 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 5.085 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 11.2 |
| Other Features | Double Row | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 522183 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 3.031 Inch | 77 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.8 Inch | 171.5 Millimeter |
| Bolt Spacing Minimum | 6.563 Inch | 166.7Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 6.938 Inch | 176.225Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-IP-203R |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
