Specifications
| title | P2B-GTMAH-25M |
| price | $ 123.47 / each |

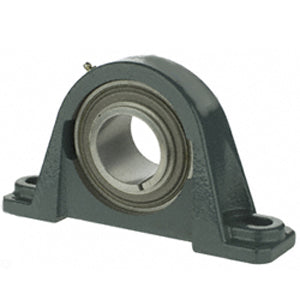

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.315 |
| Inch - Metric | Metric |
| Brand | DODGE |
| Weight / LBS | 3.748 |
| Other Features | Single Row | Medium Duty | Air Handling | Wide Inner Race | Thin Wall |
| Relubricatable | Yes |
| Global Part Number GPN | 500234 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 1.61 Inch | 40.9 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.6 Inch | 118 Millimeter |
| Bolt Spacing Minimum | 4.252 Inch | 108Millimeter |
| Base to Center Height | 1.626 Inch | 41.3 Millimeter |
| Bolt Spacing Maximum | 5 Inch | 127Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-GTM-25M |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 12 Millimeter |
| Housing Configuration | 1 Piece Solid |
