Specifications

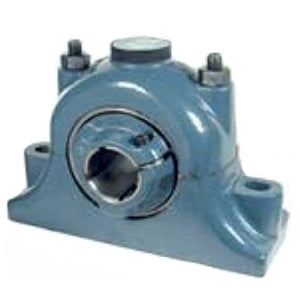

| title | P2B-C-200 |
| price | $ 1,936.41 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 21.34 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 47 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 522614 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5.75 Inch | 146.05 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 9.8 Inch | 248.9 Millimeter |
| Bolt Spacing Minimum | 9.25 Inch | 234.95Millimeter |
| Base to Center Height | 3.75 Inch | 95.25 Millimeter |
| Bolt Spacing Maximum | 10.25 Inch | 260.35Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | DU-C-200 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Multi Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
