Specifications

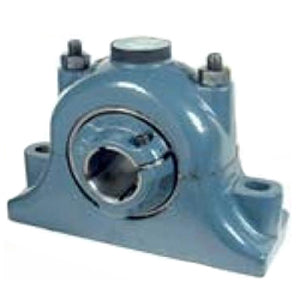

| title | P2B-C-115 |
| price | $ 1,622.02 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 14.437 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 29 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 522616 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5.25 Inch | 133.35 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8.8 Inch | 223 Millimeter |
| Bolt Spacing Minimum | 8.5 Inch | 215.9Millimeter |
| Base to Center Height | 3.25 Inch | 82.55 Millimeter |
| Bolt Spacing Maximum | 9 Inch | 228.6Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | DU-C-115 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Multi Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
