Specifications
| title | NP-20TC |
| price | $ 147.50 / each |

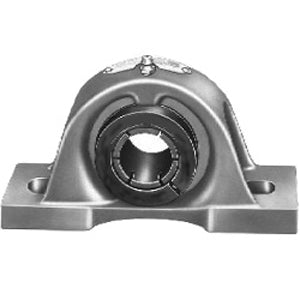

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 2.18 |
| Inch - Metric | Inch |
| Brand | SEALMASTER |
| Weight / LBS | 4.8 |
| Other Features | Single Row | Standard Duty | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 6493 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.688 Inch | 42.87 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5 Inch | 127 Millimeter |
| Bolt Spacing Minimum | 4.688 Inch | 119.075Millimeter |
| Base to Center Height | 1.875 Inch | 47.63 Millimeter |
| Bolt Spacing Maximum | 5.313 Inch | 134.95Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2-14TC |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
