AMI BEARINGS

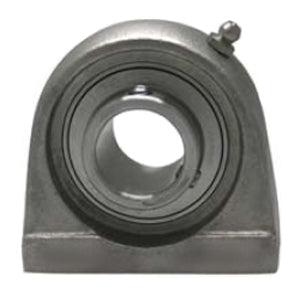

AMI BEARINGS MUCTB210-31NP

  • Write a review
  • FREE SHIPPING on orders over $100
    • $311.64 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title MUCTB210-31NP
    price $ 366.63 / each
    Category Pillow Block Bearings
    UNSPSC 31171511
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name ASAHI BEARINGS
    Weight / kgm 2.36
    Inch - Metric Inch
    Brand AMI BEARINGS
    Weight / LBS 5.2
    Other Features Single Row | Spherical | Normal Duty | Has Slinger
    Relubricatable Yes
    Global Part Number GPN 526064
    Mounting Method Set Screw
    Length Thru Bore 2.031 Inch | 51.59 Millimeter
    Actual Bolt Center to Center 4 Inch | 102Millimeter
    Nominal Bolt Center to Center 4 Inch | 101.6 Millimeter
    Bolt Spacing Minimum 0 Inch | 0Millimeter
    Base to Center Height 2.25 Inch | 57.15 Millimeter
    Bolt Spacing Maximum 0 Inch | 0Millimeter
    Housing Style 2 Bolt Tap Base Pillow Block
    Insert Part Number MUC210-31
    Number of Mounting Holes 2
    Expansion / Non-expansion Non-expansion
    Seals Contact Seal
    Housing Material Nickel Coated Cast Iron
    Mounting Bolts 5/8 Inch
    Housing Configuration 1 Piece Solid
