Specifications

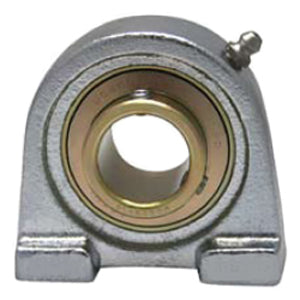

| title | MUCPA205-16NP |
| price | $ 161.41 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.64 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.4 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 526518 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.339 Inch | 34 Millimeter |
| Actual Bolt Center to Center | 2.2 Inch | 56Millimeter |
| Nominal Bolt Center to Center | 2.2 Inch | 56 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.438 Inch | 36.525 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | MUC205-16 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Nickel Coated Cast Iron |
| Mounting Bolts | 10 Millimeter |
| Housing Configuration | 1 Piece Solid |
