Specifications

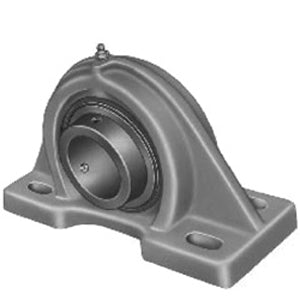

| title | MSFPD-55 |
| price | $ 1,631.00 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 23.517 |
| Inch - Metric | Inch |
| Brand | SEALMASTER |
| Weight / LBS | 51.8 |
| Other Features | Single Row | Medium Duty | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 7201 |
| Mounting Method | Set Screw |
| Length Thru Bore | 4.438 Inch | 112.725 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11.5 Inch | 292.1 Millimeter |
| Bolt Spacing Minimum | 10.75 Inch | 273.05Millimeter |
| Base to Center Height | 4.563 Inch | 115.9 Millimeter |
| Bolt Spacing Maximum | 12.25 Inch | 311.15Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 3-37D |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
