Specifications

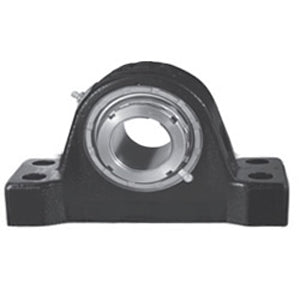

| title | MPS9515F |
| price | $ 18,564.76 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 350 |
| Other Features | Double Row | Extra Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 502524 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 7.75 Inch | 196.85 Millimeter |
| Actual Bolt Center to Center | 23 Inch | 584.2Millimeter |
| Nominal Bolt Center to Center | 23 Inch | 584.2 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 7.875 Inch | 200.025 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 9515U |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1-1/4 Inch |
| Housing Configuration | 1 Piece Solid |
