Specifications

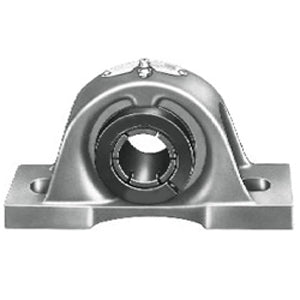

| title | MP-23T DRT |
| price | $ 278.19 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 7.1 |
| Other Features | Single Row | Medium Duty | Highly Contaminated | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 515649 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.938 Inch | 49.225 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.7 Inch | 146 Millimeter |
| Bolt Spacing Minimum | 5 Inch | 127Millimeter |
| Base to Center Height | 2.125 Inch | 53.98 Millimeter |
| Bolt Spacing Maximum | 6.375 Inch | 161.925Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 3-17T-DRT |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
