Specifications

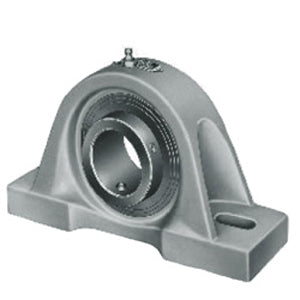

| title | MHP-47C CXU |
| price | $ 1,434.62 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 34 |
| Other Features | Single Row | Medium Duty | Air Handling Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 515678 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.25 Inch | 82.55 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11.4 Inch | 290 Millimeter |
| Bolt Spacing Minimum | 10.5 Inch | 266.7Millimeter |
| Base to Center Height | 4 Inch | 101.6 Millimeter |
| Bolt Spacing Maximum | 12.25 Inch | 311.15Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 3-215C-CXU |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
