Specifications
| title | MAF6215 |
| price | $ 890.07 / each |

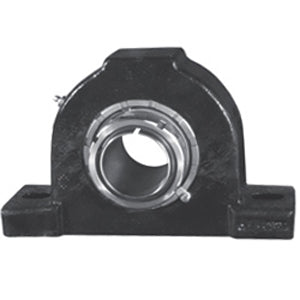

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 20.43 |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 45 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 502956 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 4.531 Inch | 115.09 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 10.4 Inch | 264.2 Millimeter |
| Bolt Spacing Minimum | 9.875 Inch | 250.83Millimeter |
| Base to Center Height | 3.75 Inch | 95.25 Millimeter |
| Bolt Spacing Maximum | 11 Inch | 279.4Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 6215U |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
