Specifications
title | KAS2303 |
price | $ 1,458.30 / each |

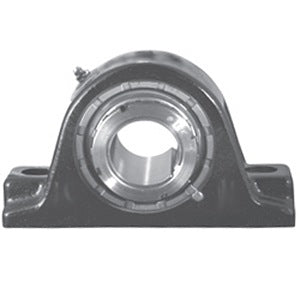

Category | Pillow Block Bearings |
UNSPSC | 31171511 |
Harmonized Tariff Code | 8483.20.40.80 |
Manufacturer Name | REXNORD |
Inch - Metric | Inch |
Brand | REXNORD |
Weight / LBS | 41.8 |
Other Features | Double Row | Normal Duty | Single Collar | With Set Screw |
Relubricatable | Yes |
Global Part Number GPN | 503233 |
Mounting Method | Concentric Collar |
Length Thru Bore | 4.375 Inch | 111.13 Millimeter |
Actual Bolt Center to Center | 10 Inch | 254Millimeter |
Nominal Bolt Center to Center | 10 Inch | 254 Millimeter |
Bolt Spacing Minimum | 0 Inch | 0Millimeter |
Base to Center Height | 3.75 Inch | 95.25 Millimeter |
Bolt Spacing Maximum | 0 Inch | 0Millimeter |
Housing Style | 2 Bolt Pillow Block |
Insert Part Number | 2303U |
Number of Mounting Holes | 2 |
Expansion / Non-expansion | Expansion |
Seals | Light Contact |
Housing Material | Cast Iron |
Mounting Bolts | 7/8 Inch |
Housing Configuration | 1 Piece Solid |
