Specifications

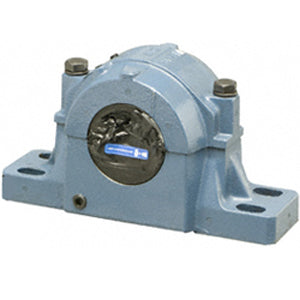

| title | FSAF 22316 |
| price | $ 1,292.43 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 67 |
| Other Features | Double Row | Heavy Duty |
| Relubricatable | Yes |
| Mounting Method | Shaft Mount |
| Length Thru Bore | 6.5 Inch | 165.1 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11.6 Inch | 294.6 Millimeter |
| Bolt Spacing Minimum | 10.625 Inch | 269.875Millimeter |
| Base to Center Height | 4.252 Inch | 108 Millimeter |
| Bolt Spacing Maximum | 12.625 Inch | 320.675Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 22316 CC/W33 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
