FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

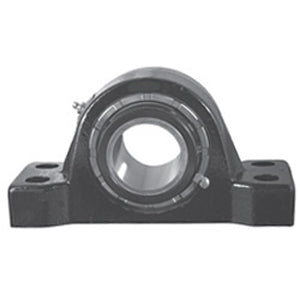

| title | EPEB22643FE7 |
| price | $ 1,517.18 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 31 |
| Other Features | Double Row | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 517957 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 3.86 Inch | 98.044 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8.8 Inch | 223 Millimeter |
| Bolt Spacing Minimum | 7.813 Inch | 198.44Millimeter |
| Base to Center Height | 3.125 Inch | 79.38 Millimeter |
| Bolt Spacing Maximum | 9.875 Inch | 250.83Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | B22643E7L |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
