Specifications

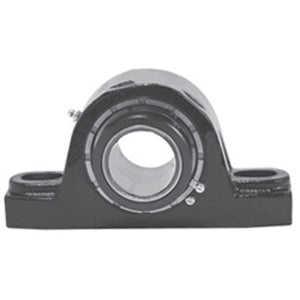

| title | EPEB22427E7 |
| price | $ 371.80 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 11 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 518046 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.125 Inch | 79.38 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.1 Inch | 156 Millimeter |
| Bolt Spacing Minimum | 5.25 Inch | 133.35Millimeter |
| Base to Center Height | 2.125 Inch | 53.98 Millimeter |
| Bolt Spacing Maximum | 6.5 Inch | 165.1Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B22427E7L |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
