Specifications

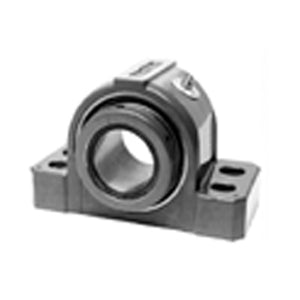

| title | EP4B-S2-415R |
| price | $ 3,040.70 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 56.3 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 124 |
| Other Features | Double Row | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 522630 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 6.91 Inch | 175.514 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 15.5 Inch | 393.7 Millimeter |
| Bolt Spacing Minimum | 15.25 Inch | 387.35Millimeter |
| Base to Center Height | 5.5 Inch | 139.7 Millimeter |
| Bolt Spacing Maximum | 15.75 Inch | 400.05Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | INS-S2-415R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
