FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

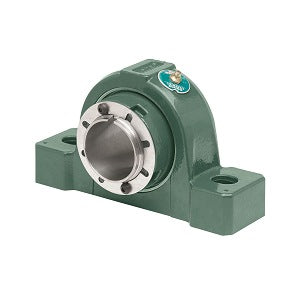

| title | EP2B-IP-107L |
| price | $ 331.66 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 3.171 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 6.99 |
| Other Features | Double Row | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 522853 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 2.625 Inch | 66.675 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.3 Inch | 133.5 Millimeter |
| Bolt Spacing Minimum | 5.625 Inch | 142.875Millimeter |
| Base to Center Height | 1.875 Inch | 47.63 Millimeter |
| Bolt Spacing Maximum | 5.875 Inch | 149.225Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-IP-107L |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Metallic Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
