Specifications
| title | EMP-63 |
| price | $ 4,304.35 / each |

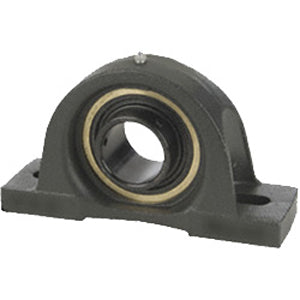

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 32.688 |
| Inch - Metric | Inch |
| Brand | SEALMASTER |
| Weight / LBS | 72 |
| Other Features | Single Row | Medium Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 6134 |
| Mounting Method | Set Screw |
| Length Thru Bore | 4.625 Inch | 117.475 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 13.3 Inch | 336.8 Millimeter |
| Bolt Spacing Minimum | 11.75 Inch | 298.45Millimeter |
| Base to Center Height | 5 Inch | 127 Millimeter |
| Bolt Spacing Maximum | 14.75 Inch | 374.65Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | AR-3-315 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 1 Piece Solid |
