Specifications
| title | ASPP207-106 |
| price | $ 40.16 / each |

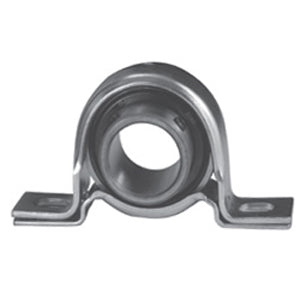

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 1.3 |
| Other Features | Single Row | Light Duty | Narrow Inner Race |
| Relubricatable | No |
| Global Part Number GPN | 514845 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.339 Inch | 34 Millimeter |
| Actual Bolt Center to Center | 4.2 Inch | 106Millimeter |
| Nominal Bolt Center to Center | 4.3 Inch | 108 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.563 Inch | 39.7 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | AS207-106 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contour Riding |
| Housing Material | Stamped Steel |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
