Specifications
| title | ASPP205-100 |
| price | $ 27.07 / each |

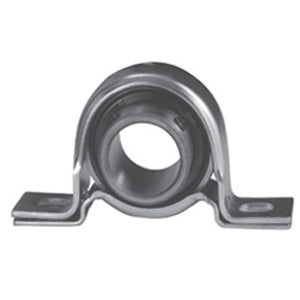

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 0.32 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 0.7 |
| Other Features | Single Row | Light Duty | Narrow Inner Race |
| Relubricatable | No |
| Global Part Number GPN | 514850 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.063 Inch | 27 Millimeter |
| Actual Bolt Center to Center | 3.4 Inch | 86Millimeter |
| Nominal Bolt Center to Center | 3.4 Inch | 86 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.125 Inch | 28.575 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | AS205-100 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contour Riding |
| Housing Material | Stamped Steel |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
