Specifications

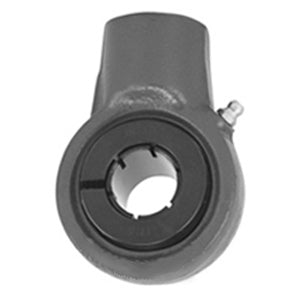

| title | UEECH206TC |
| price | $ 128.42 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | AMI BEARINGS |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 2.14 |
| Bore | 1.181 Inch | 30 Millimeter |
| EAN | 80825018399 |
| Other Features | Single Row | Spherical | Corrosion Resistance | Wide Inner Race | Buna Nitrile Seal |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.567 Inch | 39.8 Millimeter |
| Base to Center Height | 2.52 Inch | 64 Millimeter |
| Housing Outside Diameter | 3.15 Inch | 80 Millimeter |
| Housing Overall Length | 4.094 Inch | 104 Millimeter |
| Mounting Thread | 3/4 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | UE206 |
| Rating | Normal Duty |
| Housing Material | Teflon Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
