Specifications

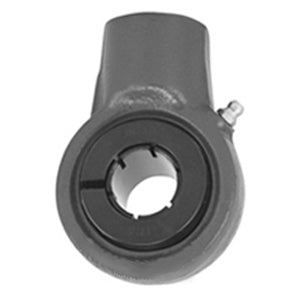

| title | UEECH206-18TC |
| price | $ 128.96 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | AMI BEARINGS |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 2.16 |
| Bore | 1.125 Inch | 28.575 Millimeter |
| EAN | 80825018402 |
| Other Features | Single Row | Spherical | Corrosion Resistance | Wide Inner Race | Buna Nitrile Seal |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.567 Inch | 39.802 Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Housing Outside Diameter | 3.125 Inch | 79.375 Millimeter |
| Housing Overall Length | 4.125 Inch | 104.775 Millimeter |
| Mounting Thread | 3/4 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | UE206-18 |
| Rating | Normal Duty |
| Housing Material | Teflon Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
