AMI BEARINGS

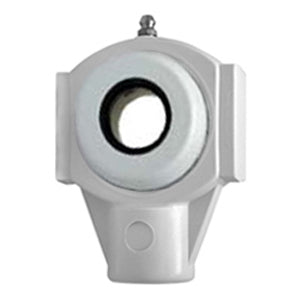

AMI BEARINGS UCHPL207MZ2RFCW

  • Write a review
  • FREE SHIPPING on orders over $100
    • $146.02 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCHPL207MZ2RFCW
    price $ 171.79 / each
    Category Hanger Unit Bearings
    UNSPSC 31171513
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name AMI BEARINGS
    Inch - Metric Metric
    Brand AMI BEARINGS
    Weight / LBS 1.72
    Bore 1.378 Inch | 35 Millimeter
    EAN 808250404032
    Other Features Single Row | Spherical | Wide Inner Race | White Housing | 2 Open Cover
    Relubricatable Yes
    Mounting Method Set Screw
    Length Thru Bore 1.689 Inch | 42.9 Millimeter
    Base to Center Height 2.992 Inch | 76 Millimeter
    Housing Outside Diameter 3.5 Inch | 88.9 Millimeter
    Housing Overall Length 4.921 Inch | 125 Millimeter
    Mounting Thread 5/8 Straight Pipe Female
    Insert Material Zinc Coated Steel
    Housing Style Hanger Unit
    Insert Part Number UC207MZ2RF
    Rating Normal Duty
    Housing Material Thermoplastic
    Expansion / Non-expansion Non-expansion
    Seals Double Lip Contact
