Specifications

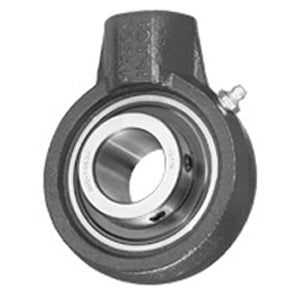

| title | UCHA 214 43 |
| price | $ 225.99 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 13.2 |
| Bore | 2.688 Inch | 68.275 Millimeter |
| Other Features | Single Row | Spherical | Wide Inner Race |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.063 Inch | 77.8 Millimeter |
| Base to Center Height | 4.625 Inch | 117.475 Millimeter |
| Housing Outside Diameter | 6.531 Inch | 165.887 Millimeter |
| Housing Overall Length | 7.875 Inch | 200.025 Millimeter |
| Mounting Thread | 1-1/2 Straight Pipe Female |
| Insert Material | Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | UC214-43 |
| Rating | Normal Duty |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
