IPTCI

IPTCI UCHA 211 34

  • Write a review
  • FREE SHIPPING on orders over $100
    • $102.03 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications

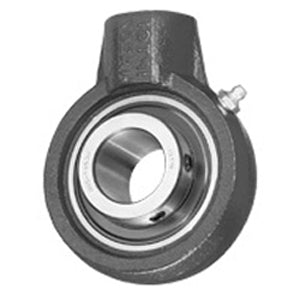

    title UCHA 211 34
    price $ 120.04 / each
    Category Hanger Unit Bearings
    UNSPSC 31171513
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI
    Inch - Metric Inch
    Brand IPTCI
    Weight / LBS 8.5
    Bore 2.125 Inch | 53.975 Millimeter
    Other Features Single Row | Spherical | Wide Inner Race
    Relubricatable Yes
    Mounting Method Set Screw
    Length Thru Bore 2.563 Inch | 65.1 Millimeter
    Base to Center Height 4 Inch | 101.6 Millimeter
    Housing Outside Diameter 5.594 Inch | 142.088 Millimeter
    Housing Overall Length 6.813 Inch | 173.05 Millimeter
    Mounting Thread 1-1/4 Straight Pipe Female
    Insert Material Steel
    Housing Style Hanger Unit
    Insert Part Number UC211-34
    Rating Normal Duty
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals B Seal
