FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

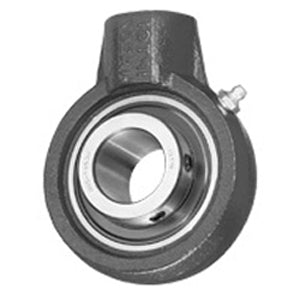

| title | UCHA 208 40MM |
| price | $ 50.93 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Metric |
| Brand | IPTCI |
| Weight / LBS | 3.4 |
| Bore | 1.575 Inch | 40 Millimeter |
| Other Features | Single Row | Spherical | Wide Inner Race |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Base to Center Height | 2.874 Inch | 73 Millimeter |
| Housing Outside Diameter | 3.937 Inch | 100 Millimeter |
| Housing Overall Length | 4.843 Inch | 123 Millimeter |
| Mounting Thread | 3/4 Straight Pipe Female |
| Insert Material | Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | UC208 |
| Rating | Normal Duty |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
