IPTCI

IPTCI UCHA 206 19

  • Write a review
  • FREE SHIPPING on orders over $100
    • $28.77 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications

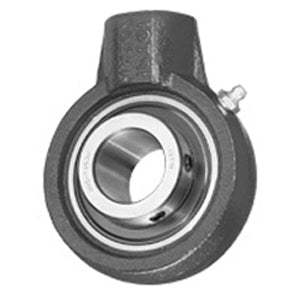

    title UCHA 206 19
    price $ 33.85 / each
    Category Hanger Unit Bearings
    UNSPSC 31171513
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI
    Inch - Metric Inch
    Brand IPTCI
    Weight / LBS 1.9
    Bore 1.188 Inch | 30.175 Millimeter
    Other Features Single Row | Spherical | Wide Inner Race
    Relubricatable Yes
    Mounting Method Set Screw
    Length Thru Bore 1.5 Inch | 38.1 Millimeter
    Base to Center Height 2.5 Inch | 63.5 Millimeter
    Housing Outside Diameter 3.156 Inch | 80.162 Millimeter
    Housing Overall Length 4.094 Inch | 103.988 Millimeter
    Mounting Thread 3/4 Straight Pipe Female
    Insert Material Steel
    Housing Style Hanger Unit
    Insert Part Number UC206-19
    Rating Normal Duty
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals B Seal
