Specifications

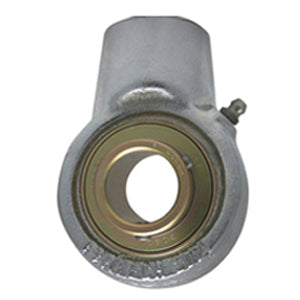

| title | UCECH208-25NP |
| price | $ 143.63 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | AMI BEARINGS |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 3 |
| Bore | 1.563 Inch | 39.7 Millimeter |
| EAN | 808250319923 |
| Other Features | Single Row | Spherical | Corrosion Resistance | Wide Inner Race | Has Slinger |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Base to Center Height | 2.875 Inch | 73.025 Millimeter |
| Housing Outside Diameter | 3.75 Inch | 95.25 Millimeter |
| Housing Overall Length | 4.75 Inch | 120.65 Millimeter |
| Mounting Thread | 3/4 Straight Pipe Female |
| Insert Material | Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | UC208-25 |
| Rating | Normal Duty |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
