Specifications

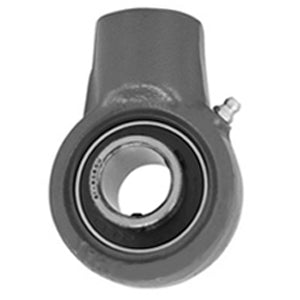

| title | UCECH202-10TCMZ2 |
| price | $ 87.97 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | AMI BEARINGS |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.66 |
| Bore | 0.625 Inch | 15.875 Millimeter |
| EAN | 808250319541 |
| Other Features | Single Row | Spherical | Corrosion Resistance | Wide Inner Race | Has Slinger |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.22 Inch | 30.988 Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Housing Outside Diameter | 2.75 Inch | 69.85 Millimeter |
| Housing Overall Length | 3.875 Inch | 98.425 Millimeter |
| Mounting Thread | 3/4 Straight Pipe Female |
| Insert Material | Zinc Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | UC202-10MZ2 |
| Rating | Normal Duty |
| Housing Material | Teflon Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
