FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

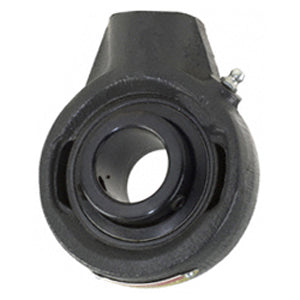

| title | SEHBD-63 |
| price | $ 3,791.88 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 63.2 |
| Bore | 3.938 Inch | 100.025 Millimeter |
| EAN | 662461073360 |
| Other Features | Single Row | Spherical | Double Setscrew | Metal Land Riding Retainer | Has Flinger | External Lube |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 5.375 Inch | 136.525 Millimeter |
| Base to Center Height | 8.125 Inch | 206.375 Millimeter |
| Housing Outside Diameter | 10.25 Inch | 260.35 Millimeter |
| Housing Overall Length | 13.25 Inch | 336.55 Millimeter |
| Mounting Thread | 2-1/2 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | 3-315D |
| Rating | Medium Duty |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
