FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

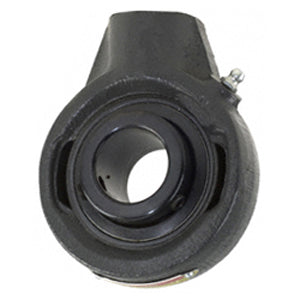

| title | SEHBD-39 |
| price | $ 561.78 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 9.63 |
| Bore | 2.438 Inch | 61.925 Millimeter |
| EAN | 662461100493 |
| Other Features | Single Row | Spherical | Double Setscrew | Metal Land Riding Retainer | Has Flinger | External Lube |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.125 Inch | 79.375 Millimeter |
| Base to Center Height | 4 Inch | 101.6 Millimeter |
| Housing Outside Diameter | 5.625 Inch | 142.875 Millimeter |
| Housing Overall Length | 6.813 Inch | 173.05 Millimeter |
| Mounting Thread | 1 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | 2-27D |
| Rating | Normal Duty |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
