Specifications

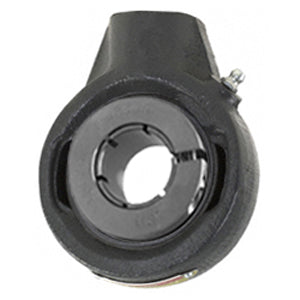

| title | SEHB-20TC |
| price | $ 246.90 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 3.4 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 662461279298 |
| Other Features | Single Row | Spherical | Metal Land Riding Retainer | Has Flinger | External Lube |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.75 Inch | 44.45 Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Housing Outside Diameter | 3.625 Inch | 92.075 Millimeter |
| Housing Overall Length | 4.563 Inch | 115.9 Millimeter |
| Mounting Thread | 3/4 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | 2-14TC |
| Rating | Normal Duty |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
