Specifications

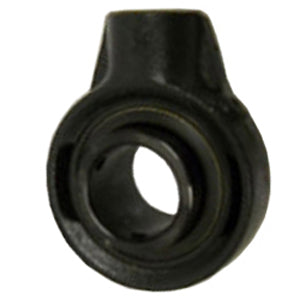

| title | SCHB-39C |
| price | $ 468.16 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 9.15 |
| Bore | 2.438 Inch | 61.925 Millimeter |
| EAN | 662461021453 |
| Other Features | Single Row | Spherical | Metal Land Riding Retainer | Has Flinger |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.563 Inch | 65.1 Millimeter |
| Base to Center Height | 4 Inch | 101.6 Millimeter |
| Housing Outside Diameter | 5.625 Inch | 142.875 Millimeter |
| Housing Overall Length | 6.813 Inch | 173.05 Millimeter |
| Mounting Thread | 1-1/4 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | 2-27C |
| Rating | Normal Duty |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
