Specifications

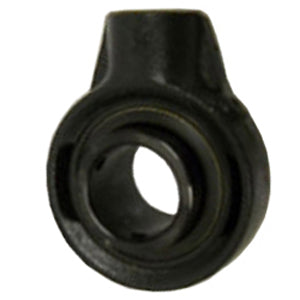

| title | SCHB-320 |
| price | $ 3,065.34 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Metric |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 16.6 |
| Bore | 3.937 Inch | 100 Millimeter |
| EAN | 662461070239 |
| Other Features | Single Row | Spherical | Metal Land Riding Retainer | Has Flinger |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 4.626 Inch | 117.5 Millimeter |
| Base to Center Height | 8.126 Inch | 206.4 Millimeter |
| Housing Outside Diameter | 10.252 Inch | 260.4 Millimeter |
| Housing Overall Length | 13.252 Inch | 336.6 Millimeter |
| Mounting Thread | 2-1/2 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | 5320 |
| Rating | Medium Duty |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
