FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

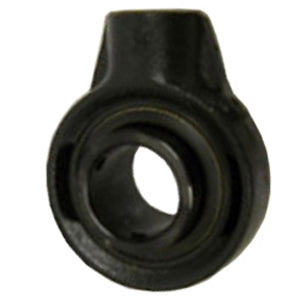

| title | SCHB-23C |
| price | $ 286.85 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 3.3 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| EAN | 662461021354 |
| Other Features | Single Row | Spherical | Metal Land Riding Retainer | Has Flinger |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.938 Inch | 49.225 Millimeter |
| Base to Center Height | 2.875 Inch | 73.025 Millimeter |
| Housing Outside Diameter | 3.75 Inch | 95.25 Millimeter |
| Housing Overall Length | 4.75 Inch | 120.65 Millimeter |
| Mounting Thread | 3/4 Straight Pipe Female |
| Insert Material | Black Oxide Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | 3-17C |
| Rating | Medium Duty |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
